Wire Processing

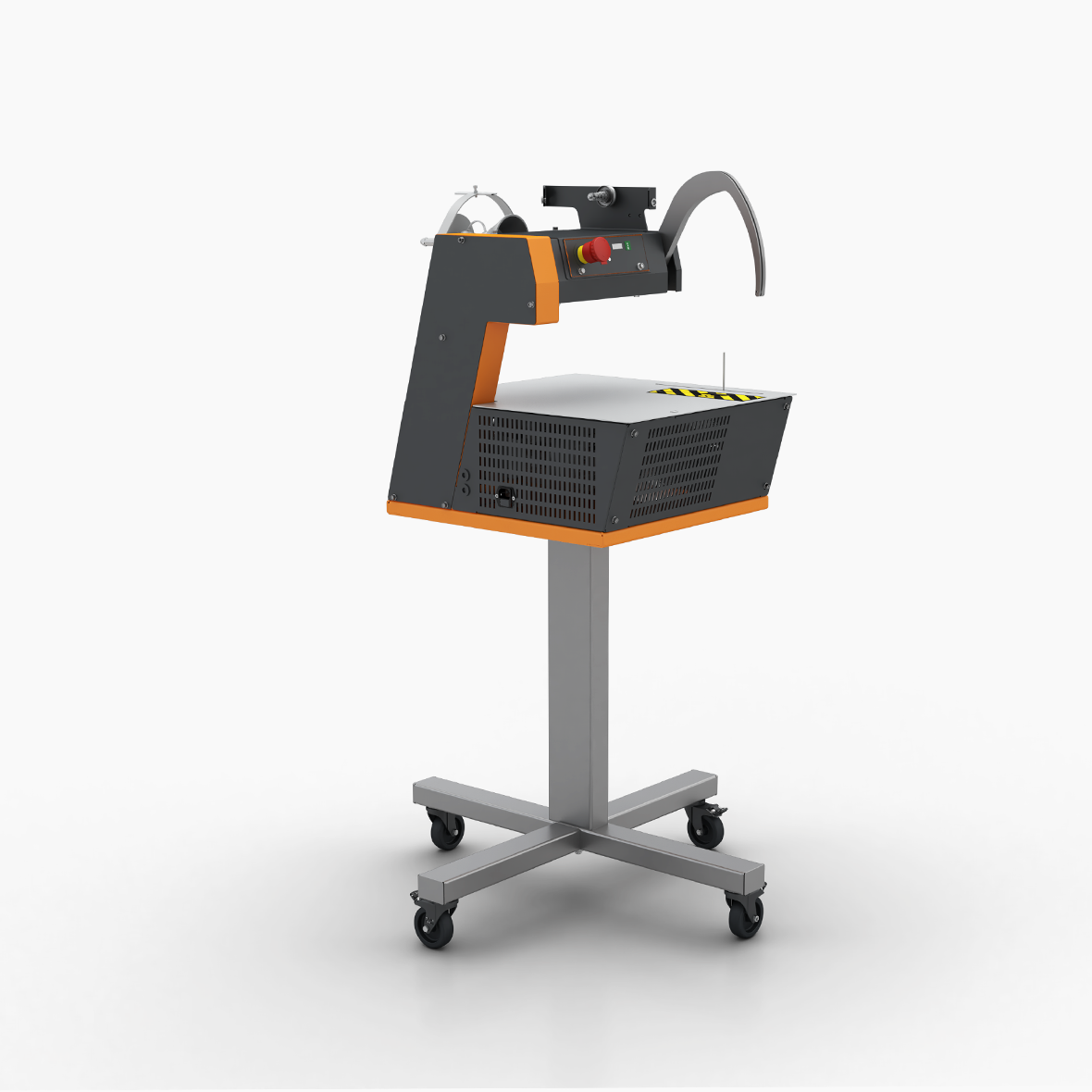

TM 66
The universal, semi-automatic TM 66 Tying Machine is used to tie coils, hanks, or bundles of wire, cable, and tubing with diameters from 5 to 150 mm (0.2" - 5.9").
Technical data
| Specification name | Specification value |
|---|---|
| Elastic cord | Type: 1.0 mm (0.039”) diameter triple elastic core with woven Lycra jacket |
| Tying tension | Adjustable range: 2-7 N (0.50 to 1.50 lbs) |
| Tying dimensions | Tying diameter min.: 5 mm (0.2”) Tying diameter max.: 150 mm (6”) Coil inside diameter min.: 150 mm (6”) Coil outside diameter max.: Unlimited |
| CE conformity | The TM 66 complies fully with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
| Electrical connection | 115 VAC, 60 Hz / max. 180 VA |
| Dimensions/length | 18.9 in |
