Wire Stripping

Strip Series B300

The portable B300 stripping machine reliably strips cables with cross sections from 0.03 to 8 mm² (32 to 8 AWG) and up to 7 mm (0.27") outer diameter.

Talk to an Expert

Highlights

High-Resolution Touchscreen with Concise User Interface

All relevant information is displayed in a large format and clearly distinguished by color. The most frequently used functions are visualized for easy guidance.

Simple Conductor Processing in Only 35 Clicks

Programming multiconductor cables is fast and easy with the B300. It takes about 35 clicks to program a multicore cable—compared to approximately 130 clicks on the UniStrip 2300.

High flexibility with additional clamp jaws

The narrow 1.8 mm clamping jaws and various surface options (cross-hatch and diamond) enable the processing of a wide range of cables. Cable-specific jaws are available on request.

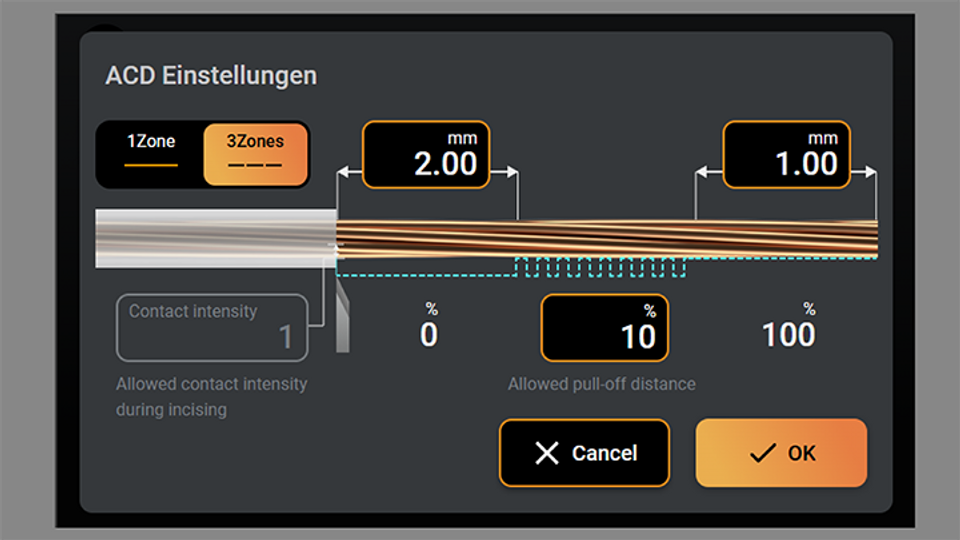

Equipped with ACD Quality Control

Automatic Conductor Detection (ACD) ensures high quality by detecting incisions in the conductor and automatically stopping the process or triggering an alarm.

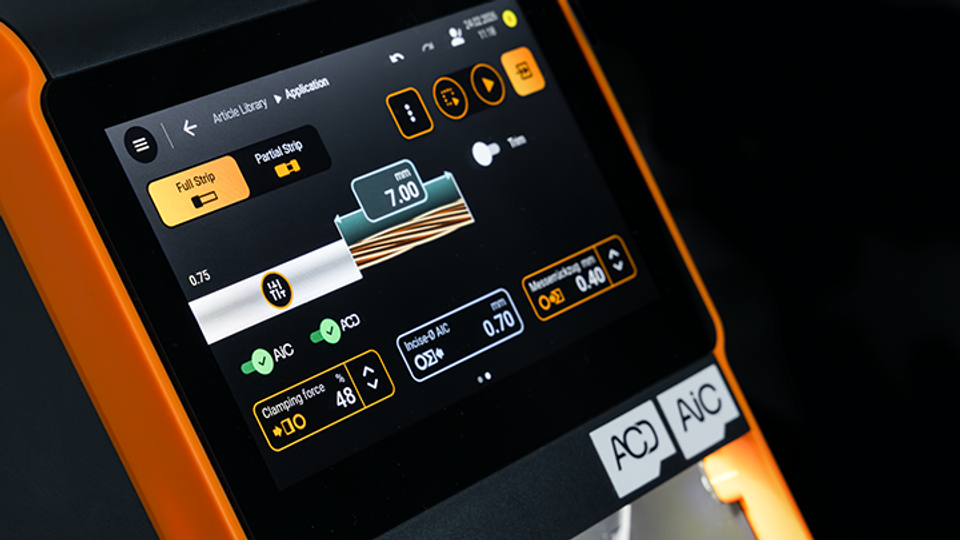

Optional AIC Quality Control

The Adaptive Incision Control (AIC) lightly touches the inner conductor and adjust incision depth automatically. No operator setup is needed, as AIC sets safety parameters itself.

Technical data

4 Variants

Select variant

Metric Imperial

Strip Series B300 Core specifications
Specification name	Specification value
Options	Foot pedal, Software Upgrade, Short breakout length kit, Air jet, Cable-specific clamping jaws, Blades
Wire outer diameter min.	0.001 in
Wire outer diameter max.	0.28 in
Insertion depth with optional thin grippers min.	0.236 in
Number of entries in the article library	virtually unlimited
Strip length min.	0.004 in
