Wide Range of Stripping Possibilities
The Strip Series B240 with full or partial pull-off, multi-step, or multi-layer stripping can even process stranded wires and multiconductor cables with short jacket strips.
Multilayer Stripping

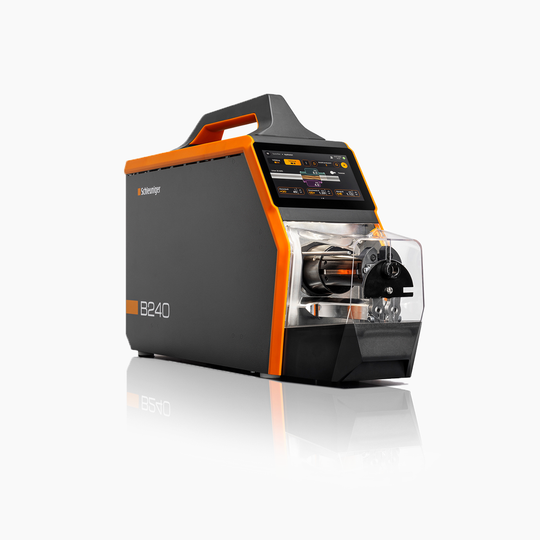

Strip Series B240
The Strip Series B240 strips coaxial, multiconductor and single-conductor cables with a cross section from 0.013 to 13 mm² (36 – 6 AWG) and a diameter of up to 9 mm (0.35”).
Highlights
Focus on Ergonomic Design and Intuitive Handling
The semi-automatic wire stripper of the B Series offers intuitive operation on a high-resolution color touchscreen. The ergonomic design supports rapid cable processing.
Precise Cable Guidance with Universal Clamping Jaws
The blades and general-purpose clamping jaws can be used across the entire range of cable processing applications without requiring any mechanical adjustments.
High-Quality Stripping with Rotary Head
The cutter head features high rotational stability and repeat accuracy. Its high-resolution movement axes allow for the accurate stripping of even very thin cables.
Technical data
| Specification name | Specification value |
|---|---|
| Options | Air jet, foot pedal, extraction, Automation Interface, short breakout kit |
| Wire outer diameter min. | 0.6 mm |
| Wire outer diameter max. | 9 mm |
| Number of entries in the article library | virtually unlimited |
| Strip length min. | 0.1 mm |
| Strip length max. | 80 mm |
Processing capabilities
Cutting to length
Full stripping
Partial stripping
Multistep stripping
Multicore cable processing
Coaxial cable processing
